JHT lab 3d powder mixer machine
1. Introduction

JHT new.png

3. Main Purpose of The Research of Double Movement Mixer

With the advent of Made in China 2025, various new material

research and development have sprung up, and it is difficult

to find small desktop mixers with excellent performance in the

current market. Fortunately, the dual-motion desktop experimental

machine came into being. It was developed to uphold the advanced

mixing principle of double movement ® mixer, yet small enough to

run on a desk.

It should be noted that the volume of the barrel of the desktop

testing machine is between 2 liters ~ 20 liters, because the

batch of mixing powder for experimental purposes is less,

the powder pressure between the powders is lower, and

the intensity of its mixing movement is also lower, so the

mixing efficiency of the desktop testing machine is slightly

lower than that of the medium-sized mixer above 100 liters.

Appropriately extending the mixing time can also achieve

good mixing results.

Using advanced double movement overlay mixing technology,

it realizes two functions of gravity diffusion mixing and forced

shear mixing on one device. It can achieve macroscopic uniformity -

that is, let the powder roll up and down, left and right convection

diffusion and uniform mixing; It can also repeatedly intersperse and

cut between particles and particles at the microscopic level of the

powder to achieve fine forced mixing. Therefore, the mixing uniformity

can reach the ideal state of macroscopic uniformity and microscopic

ultra-fine uniformity.

This is also because of the advanced principle of superimposed mixing of two movements, two movements are carried out at the same time in a unit time, which not only doubles the mixing efficiency, but also promotes each other just right, and promotes the mixing work more effectively. As a result, the double movement ® mixer saves up to 60% of time compared to conventional mixers.

In the double movement ® mixer, the main mixing work is done by the internal moving spiral blades, so the remaining space of the barrel can be small. Therefore, in the case of a large loading rate, the equipment can still perform the mixing task well. As a result, the double movement® mixer has a loading capacity of more than 50% compared to traditional mixers.

4. Double Movement®Mixing Principle


Knowledge 1.png

Knowledge 2.png

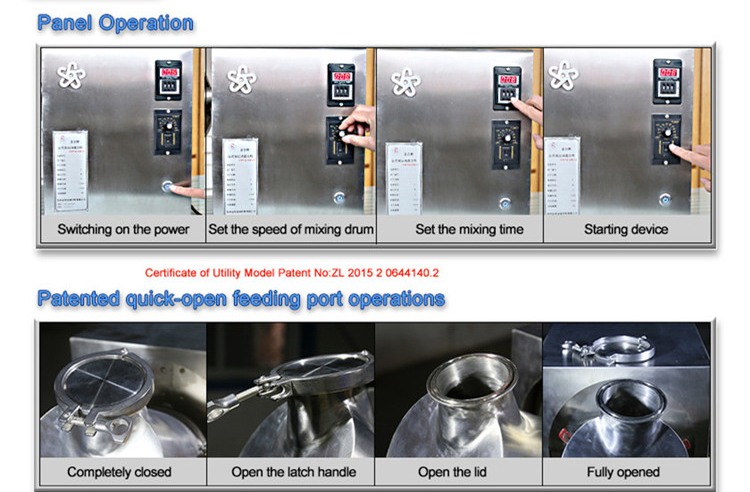

5. Equipment Operation Method



6. Equipment Specification
ModelBarrel Capacity(L)Max. Loading rate(kg)Barrel Speed(r/min)Blade Speed(r/min)Motor Power(kw)Dimension
(L*W*H mm)

7. Double Movement®Eight Advantages of Mixer


8. Play an important role in high tech materials industry

9. Compare With Traditional Mixer
