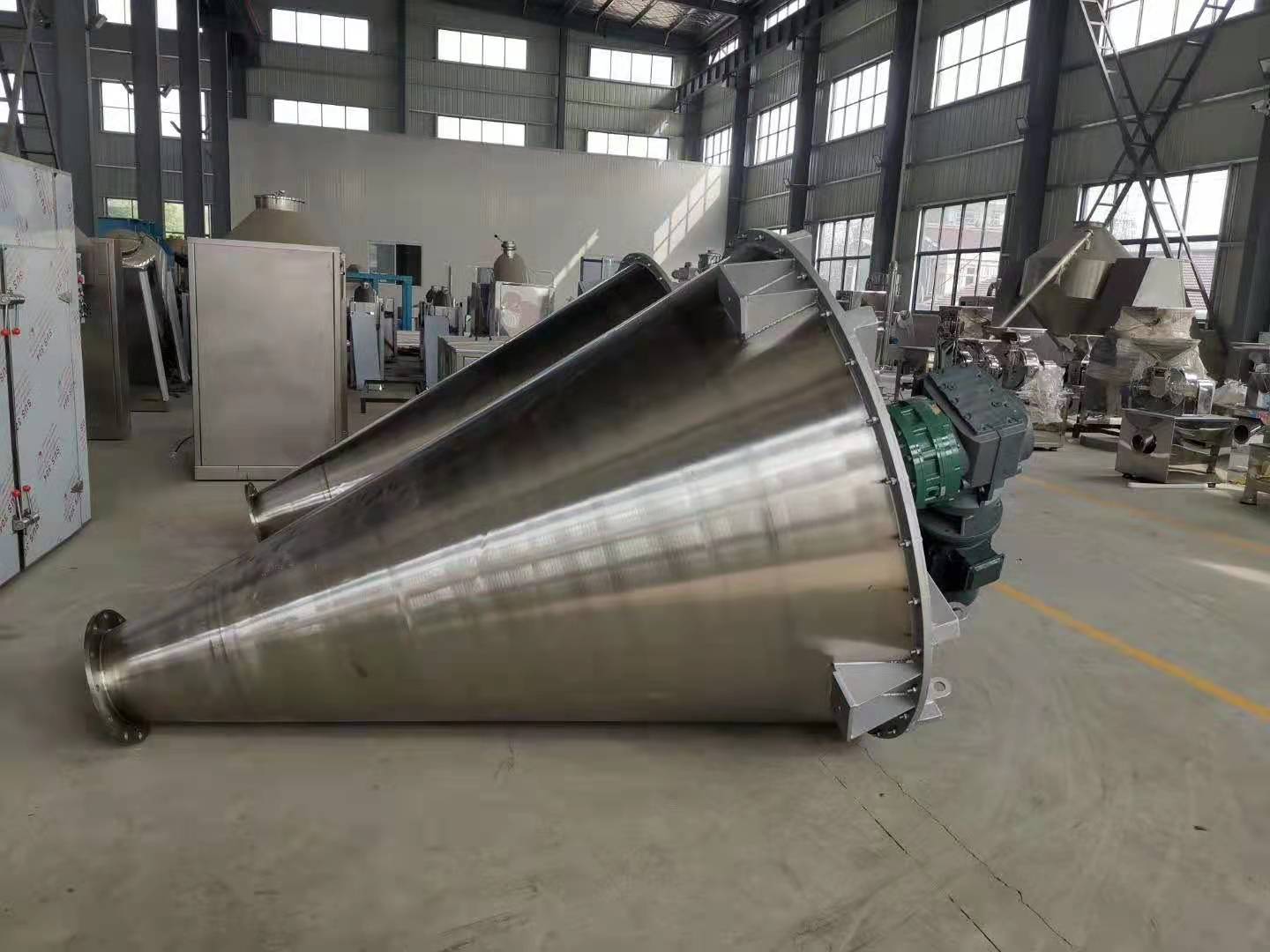

JHCS vertical nauta mixer
JHCS Double screw cone mixer is a new type of high-efficiency and high-precision mixing equipment. The machine adopts a set of motor and cycloidal pinwheel reducer to form revolution and rotation, and uses the principle of combining the rotary motion of the long and short stirring screws with the rotary motion of the two screws, so that the materials with different proportions can achieve the ideal mixing degree and mixing time. Short and effective. It is widely used in the mixing of various powders in food, activated carbon, chemical, pesticide, feed, petroleum, metallurgical mining, building materials industry, paint and other industries.
Due to the revolution of the double helix, the powder moves in a circular motion along the cone wall. The rotation of the helical blade makes the powder discharge radially to the center of the cone. The powder is discharged from the cone to the upflow and the outer circumferential surface of the spiral, that is, the mixing in the direction of the spiral axis. The combination of the revolution and rotation of the screw in the mixer results in four flow forms of the powder, that is, the compound movement of convection, shear, diffusion and infiltration. Therefore, powder materials can be quickly and uniformly mixed in this mixer.
| Model | Total Volume(M³) | Loads coefficient | Electrical machiney power(Kw) | Size(mm)* Max-diameter *High | Equipment weight(Kg) |
| JHCS-60 | 0.06 | 0.4-0.6 | 1.5 | φ630×1451 | 150 |
| JHCS-100 | 0.1 | 0.4-0.6 | 1.5 | φ715×1569 | 250 |
| JHCS-300 | 0.3 | 0.4-0.6 | 2.2 | φ920×1960 | 550 |
| JHCS-500 | 0.5 | 0.4-0.6 | 3 | φ1140×2320 | 600 |
| JHCS-1000 | 1 | 0.4-0.6 | 4 | φ1480×2895 | 1200 |
| JHCS-1500 | 1.5 | 0.4-0.6 | 5.5 | φ1633×3210 | 1350 |
| JHCS-2000 | 2 | 0.4-0.6 | 5.5 | φ1816×3495 | 1500 |
| JHCS-3000 | 3 | 0.4-0.6 | 7.5 | φ2040×3760 | 2300 |
| JHCS-4000 | 4 | 0.4-0.6 | 11 | φ2250×4425 | 2520 |
| JHCS-6000 | 6 | 0.4-0.6 | 15 | φ2548×4940 | 3000 |
| JHCS-8000 | 8 | 0.4-0.6 | 18.5 | φ2780×5360 | 4500 |
| JHCS-10000 | 10 | 0.4-0.6 | 22 | φ3018×5815 | 5500 |
| JHCS-12000 | 12 | 0.4-0.6 | 22 | φ3204×6100 | 5900 |
| JHCS-15000 | 15 | 0.4-0.6 | 30 | φ3442×6540 | 6600 |
| JHCS-20000 | 20 | 0.4-0.6 | 37 | φ3805×7420 | 9800 |
| JHCS-25000 | 25 | 0.4-0.6 | 37 | φ4086×7800 | 10200 |
| JHCS-30000 | 30 | 0.4-0.6 | 45 | φ4330×8200 | 11500 |
Features
1. The structure is advanced, the operation is convenient, the operation is safe and reliable, and the screw shaft has no bottom bearing, which eliminates the failure caused by the leakage of powder from the bottom bearing.
2. The mixing speed is fast and the mixing quality is uniform. The double helix of this machine is asymmetrically arranged, one big and one small expand the mixing range, so the specific gravity is very different, and the special mixing ratio is more suitable for mixing. The mixing time is short, the mixing uniformity is high, and the discharge is clean.
3. The energy saving effect is remarkable, the energy consumption of this machine is only about one tenth of that of the drum mixer.
4. The mixing process is mild, and the material will not produce pressure feed, wear, and overheating.
5. The mixed preparation is stable, and does not occur delamination and segregation.
6. Sealed and dust-free, easy to operate and easy to maintain. The service life is long, and the cone can be made into a pressure vessel for pressurization and vacuum operation according to user requirements.
