High-temperature Vacuum Brazing Furnace up to 1350℃ for CBN, PCD, Diamond tools, Stainless steel, Copper, etc.
This kind of High-Temperature Vacuum Brazing Furnace working temperature can reach 1350℃; Suitable for stainless steel, CBN tools, Diamond tools brazing in the vacuum environment. Due to its high vacuum and high temperature, it can also be used for sintering and heat treatment of other workpieces.
Due to the slow cooling of the ordinary brazing furnace, the production efficiency is seriously affected. In order to accelerate the cooling rate, our company combined with years of production practice experience developed a vacuum brazing furnace rapid cooling system. The high-temperature nitrogen in the furnace is forcefully pumped out by the vacuum fan, cooled by the cooling water bag, and then sent back to the furnace by the vacuum fan. This rapid cycle leads to rapid cooling.
Technical Specifications | |
| Working Temp. | 750℃ (Alloy tube heaters) |
| 1100℃ (Heating wires) | |
| 1350℃ (Molybdenum strap heaters ) | |
| Furnace chamber | 750℃ (Stainless steel sheets) |
| 1100℃ (Ceramic fiberboard) | |
| 1350℃ (Molybdenum sheets and Stainless steel sheets ) | |
| Furnace Structure | Double layers Carbon steel casing with water cooling system to ensure the surface below 30℃ |
| The furnace door inside is polished stainless steel | |
| Working Voltage | 380V 50HZ 3P (or according to your standard) |
| Max. Power | 3KW–180KW |
| Temperature control system | |
| Temperature Control | 50 segments programmable and PID auto control or PLC |
| Upper limited alarm and deviation alarm | |
| Temperature Accuracy | +/- 1℃ |
| Heating Rate | ＜ 20℃/min |
| Temperature Alarm | Over-temperature alarm |
| Broken thermal-couple alarm | |
| Thermocouple | K / S type |
| Touch Screen | 10 inches LED touch screen |
| Over 30 working programs can be set | |
| Heating curves can be saved | |

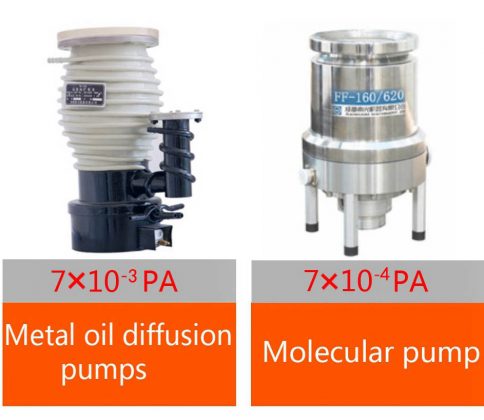

| Vacuum system | |
| Maximum Vacuum | 7×10-4Pa |
| Working Vacuum | 7×10-3Pa with Mechanical pump and Diffusion pump |
Standard Size: (other sizes can be customized)
for the Aluminum base (stainless steel chamber 750℃)
| Model | Chamber size | Max Temp. | Power | Voltage | Max. vacuum |
| JH-QHS-223 | 200*200*300mm | 750℃ | 3kW | 380V | 7×10-3 Pa (7×10-5 mbar) |
| JH-QHS-334 | 300*300*400mm | 750℃ | 6kW | 380V | |
| JH-QHS-446 | 400*400*600mm | 750℃ | 12kW | 380V | |
| JH-QHS-557 | 500*500*700mm | 750℃ | 18kW | 380V | |
| JH-QHS-669 | 600*600*900mm | 750℃ | 28kW | 380V |
for CBN, PCD, Dimond Tools (ceramic fiber chamber 1200℃)
| Model | Chamber size | Max Temp. | Power | Voltage | Max. vacuum |
| JH-200BF | 1200℃ | 200x400mm | 8 | 380V | 7×10-3 Pa (7×10-5 mbar) |
for Ag/Cu/Ni Base (molybdenum chamber 1350℃)
| Model | Chamber size | Max Temp. | Power | Voltage | Max. vacuum |
| JH-QHS-223 | 200*200*300mm | 1350℃ | 42kW | 380V | 7×10-3 Pa (7×10-5 mbar) |
| JH-QHS-334 | 300*300*400mm | 1350℃ | 72kW | 380V | |
| JH-QHS-446 | 400*400*600mm | 1350℃ | 120kW | 380V | |
| JH-QHS-557 | 500*500*700mm | 1350℃ | 160kW | 380V | |
| JH-QHS-669 | 600*600*900mm | 1350℃ | 225kW | 380V |
Vacuum Brazing Furnace Features:
Stainless steel brazing
CBN tools brazing
PCD tools brazing
Diamond tools brazing
Copper / sliver / nickel / aluminium base brazing
Advantages of Our Brazing Furnace:
No surface oxidation or discoloration
Minimal distortion
Flux free brazing
Repeatable quality
Clean, safe, quiet, and efficient
3 types Furnace Chamber for optional
